A giant tyrannosaur from the Campanian–Maastrichtian of southern North America and the evolution of tyrannosaurid gigantism | Scientific Reports - Nature.com

Abstract

Tyrannosaurid dinosaurs dominated as predators in the Late Cretaceous of Laurasia, culminating in the evolution of the giant Tyrannosaurus rex, both the last and largest tyrannosaurid. Where and when Tyrannosaurini (T. rex and kin) originated remains unclear. Competing hypotheses place tyrannosaurin origins in Asia, or western North America (Laramidia). We report a new tyrannosaurin, Tyrannosaurus mcraeensis, from the Campanian–Maastrichtian Hall Lake Formation of New Mexico, based on a fossil previously referred to T. rex. T. mcraeensis predates T. rex by ~ 6–7 million years, yet rivaled it in size. Phylogenetic analysis recovers T. mcraeensis as sister to T. rex and suggests Tyrannosaurini originated in southern Laramidia. Evolution of giant tyrannosaurs in southern North America, alongside giant ceratopsians, hadrosaurs, and titanosaurs suggests large-bodied dinosaurs evolved at low latitudes in North America.

Introduction

Tyrannosaurids were the dominant predators in North America and Asia during the Late Cretaceous^1,2,3. Evolving from small-bodied ancestors in the mid-Cretaceous, tyrannosaurids became apex predators in the latest Cretaceous, and finally saw the appearance of Tyrannosaurus rex^4,5. T. rex, characterized by a robust skeleton and powerful, bone-crushing jaws⁶, was the dominant carnivore in the late Maastrichtian of western North America^3,7. Growing to 12 m long and ~ 10 tons in weight⁸, T. rex was the largest terrestrial predator of its time, and perhaps of all time.

The origins of the Tyrannosaurus lineage, Tyrannosaurini, are unknown. Tyrannosaurus rex appeared suddenly in the latest Maastrichtian^3,7. No close relatives have been reported from North America prior to this time. Instead, the closest relatives of T. rex come from Mongolia. To explain this pattern, one hypothesis suggests tyrannosaurins dispersed into Asia via Beringia, followed by back-dispersal of Tyrannosaurini into Laramidia in the late Maastrichtian^9,10,11. This hypothesis is based on the existence of stratigraphically earlier Asian taxa, Tarbosaurus bataar¹² and Zhuchengtyrannus magnus¹³, which are close relatives of T. rex^9,10,14,15. Alternatively, Tyrannosaurus has been hypothesized to represent an endemic, North American lineage¹⁴. Here, we describe NMMNH P-3698, a giant tyrannosaurid from the late Campanian—early Maastrichtian of New Mexico (Fig. 1). Although originally identified as T. rex^16,17,18,19, this assignment has been questioned²⁰. Restudy of the specimen, including newly recovered skeletal elements (Figs. 2, 3) confirm NMMNH P-3698 represents a distinct taxon, while recently published radiometric dates show that it predates T. rex by up to 7 million years. Phylogenetic analysis recovers NMMNH P-3698 as the closest known relative of T. rex, suggesting giant Tyrannosaurini evolved in southern Laramidia.

Figure 1

Locality and stratigraphy of Tyrannosaurus mcraeensis gen. et sp. nov., NMMNH P-3698. (A), type locality in Sierra County, New Mexico; (B), stratigraphy of fossil and the Hall Lake Formation (C), recovered skull elements. Scale = 10 cm. Map by Ron Blakey.

Full size image

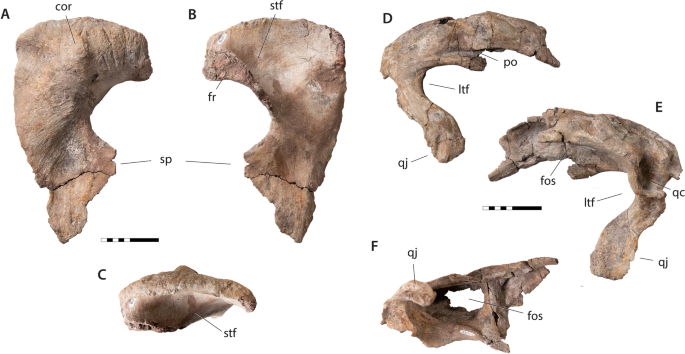

Figure 2

Cranial elements of Tyrannosaurus mcraeensis gen. et sp. nov. (NMMNH P-3698). Right postorbital in (A), lateral view; (B), medial view; (C), dorsal view. Right squamosal in (D), lateral view; (E), medial view; (F), ventral view. cor cornual boss, fos ventral fossa, fr frontal articulation, ltf lateral temporal fenestra, po postorbital articulation, sp suborbital process, stf supratemporal fossa, qc quadrate cotyle, qj quadratojugal process. Scale = 10 cm.

Full size image

Figure 3

Mandibular elements of Tyrannosaurus mcraeensis gen. et sp. nov. (NMMNH P-3698). Left dentary in (A), medial view; (B), lateral view; (C), dorsal view; (D), right splenial, medial view; (E), right angular, medial view; (F), right prearticular, medial view. ang angular contact, de shelf for dentary, mec Meckelian canal, pre prearticular facet, a1, a5, a15 alveoli 1, 5, and 15, sp splenial, sym symphysis. Scale = 20 cm.

Full size image

Systematic paleontology

Dinosauria—Owen, 1842.

Theropoda—Marsh, 1881.

Tetanurae—Gauthier, 1986.

Coelurosauria—von Huene, 1914.

Tyrannosauridae—Osborn, 1905.

Tyrannosaurinae—Currie, 2003.

Tyrannosaurini—Olshevsky, 1995.

Tyrannosaurus mcraeensis sp. nov.

LSID:

urn:lsid:zoobank.org:pub:F1658ACA-60DB-442E-AA04-015C050205BD.

(Tyrannosaurini is here defined as the last common ancestor of Tarbosaurus baatar and Tyrannosaurus rex and all its descendants).

Etymology

The species name, mcraeensis, refers to the McRae Group of western New Mexico.

Horizon and locality

Uppermost Campanian or lower Maastrichtian of the Hall Lake Formation, McRae Group, NMMNH locality 343, near Kettle Top Butte, Sierra County, New Mexico²¹ (Fig. 1A). The site lies 43 m above the base of the Hall Lake Formation. A tuff 33 m below the tyrannosaur site has a U/Pb age of 73.2 ± 0.7 Ma²² (Fig. 1B).

Diagnosis

Large tyrannosaurin distinguished from Tyrannosaurus rex (Fig. 4; SI) by the following characters (*autapomorphies): postorbital with low, posteriorly positioned cornual process; postorbital with anteriorly projecting prefrontal/frontal articular surfaces; squamosal with ventrally projecting quadratojugal process; squamosal with a concave medial margin; strong ridge bounding the anterior margin of the squamosal ventral pneumatic fossa; dentary very shallow posteriorly and with a convex posteroventral margin*; splenial with anteriorly positioned apex*; splenial with shelf-like dentary overlap*, splenial with deep, posteriorly directed angular process; prearticular weakly bowed*; small ventral prearticular-angular contact; articular T-shaped in dorsal/ventral view; retroarticular process deep and quadrangular in posterior view.

Holotype

NMMNH P-3698, partial skull including right postorbital and squamosal (Fig. 2), left palatine, fragment of maxilla, and lower jaws (Fig. 3) including left dentary, right splenial, prearticular, angular and articular, isolated teeth and associated chevrons.

Description and comparisons

The postorbital of Tyrannosaurus mcraeensis (Fig. 2A–C) is typical of tyrannosaurines^5,12 in bearing a massive cornual boss projecting above the postorbital dorsal margin. The cornual boss is C-shaped as in Tarbosaurus¹² but lacks the strong anteroventral expansion or undercut margin seen in Tarbosaurus and T. rex. The cornual boss lacks the prominent, anteriorly positioned apex above the orbit seen in T. rex, instead being more posteriorly positioned. The postorbital’s dorsal margin is arched, as in T. rex⁵. In dorsal view the orbital margin and the body of the postorbital form a wide angle, indicating a posteriorly expanded skull as in Lythronax¹⁴, Tarbosaurus¹², and Tyrannosaurus rex⁵. The frontal/prefrontal suture projects forward, whereas it is downturned in T. rex (Fig. 4A). The jugal process is anteroposteriorly expanded, with a convex jugal contact, as in T. rex⁵ and T. bataar¹². A large suborbital process projects forward to constrict the orbit as in Bistahieversor²³, Teratophoneus¹⁴, and especially T. rex⁵ and Tarbosaurus¹².

Figure 4

Tyrannosaurus mcraeensis compared with Tyrannosaurus rex. Postorbital of Tyrannosaurus mcraeensis (A₁) and Tyrannosaurus rex (A₂); Squamosal of (B₁) Tyrannosaurus mcraeensis and (B₂) Tyrannosaurus mcraeensis; Postorbital of (C₁) Tyrannosaurus mcraeensis and (C₂) Tyrannosaurus rex; prearticular of (D₁) Tyrannosaurus mcraeensis and (D₂) Tyrannosaurus rex; splenial of (E₁) Tyrannosaurus mcraeensis and (E₂) Tyrannosaurus rex; angular of (F₁), Tyrannosaurus mcraeensis and (F₂), Tyrannosaurus rex. Diagnostic characters: 1, low cornual process behind orbit; 2, anteriorly projected frontal/prefrontal articulation; 3, ventrally projected quadratojugal process; 4, upturned posteroventral margin of dentary; 5, weakly bowed prearticular; 6, anteriorly positioned splenial apex; 7, deep and posteriorly projected angular process; 8, shelf-like articulation overhanging dentary; 9, small splenial facet. Scale bars = 10 cm (A, B, D–F), 20 cm (C).

Full size image

The squamosal (Fig. 2D–F) recalls Tyrannosaurus rex⁵ in being elongate in dorsal/ventral view. It is shorter in Tarbosaurus¹², and especially Albertosaurinae²⁴. It differs from the T. rex holotype, where the squamosal is straight (Fig. 4B) in having a strongly downturned end in lateral view; however some specimens of T. rex show this feature (SI1). The quadratojugal process is downturned relative to T. rex⁵ or Tarbosaurus¹² and strongly curved. Ventrally, the squamosal bears a deep pneumatic recess. The recess’ anterior margin is defined by a transverse bar as in Tarbosaurus; this bar is reduced to a low ridge in T. rex¹².

The palatine (SI5) is broad, similar to Tarbosaurus bataar¹² but not to the degree seen in Tyrannosaurus rex; the palatine of Albertosaurinae is narrower²⁴. This wide palatine contributes to the formation of a broad rostrum as in T. rex and Tarbosaurus.

The dentary (Fig. 3A–C) measures 645 mm from the tip back to the level of the coronoid process; the bone measures 894 mm along the long axis as preserved, however the posteroventral end is broken; it may have measured around 900 mm when complete. By comparison, corresponding measurements for the holotype of Tyrannosaurus rex are 589 and 855 mm; RSM P2523.8, one of if not the largest known T. rex specimens²⁵, measures ~ 650 from the tip of the dentary to the coronoid process. Tyrannosaurus mcraeensis therefore overlaps T. rex in size (Fig. 5A), although the holotype is smaller than the largest known T. rex individuals. The dentary has 13 alveoli, a low tooth count uniquely shared with T. rex⁵ which typically has 13 dentary alveoli, and rarely 14 or 15²⁶ alveoli. Zhuchengtyrannus has 15 teeth, Tarbosaurus has 14–15^12,13; Daspletosaurus horneri¹⁰ and D. torosus have 17. The first alveolus is smaller than the second, as in other tyrannosaurins. The symphysis is deep, being about 125% the depth of the dentary at mid-length, as in T. rex. The symphysis’ anteroventral margin rises up steeply, creating a squared-off chin, again as in T. rex. The dentary’s occlusal margin rises up steeply at the back forming a strongly concave dorsal margin, as in other tyrannosaurines^5,12,13,14. Unusually, the dentary’s posterior end is shallow and upturned; it is deep and typically has a downturned ventral margin in T. rex and other tyrannosaurids^5,14,24. This condition is unique to T. mcraeensis but approached in Tarbosaurus^5,12 and Zhuchengtyrannus¹³. The angular process projects posteriorly, as in Tarbosaurus and Zhuchengtyrannus¹³ but unlike T. rex and other tyrannosaurids, where it projects posteroventrally^5,14,24.

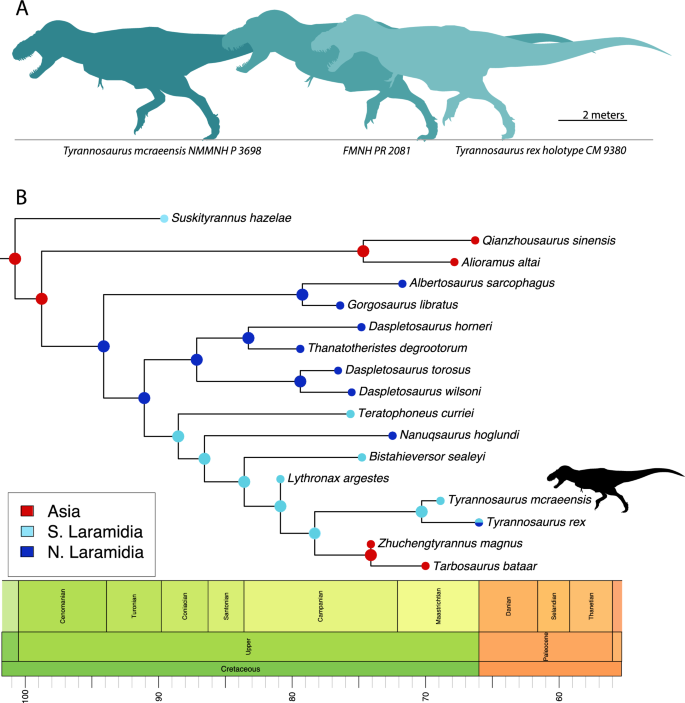

Figure 5

Size, relationships and biogeography of Tyrannosaurus mcraeensis. (A), relative sizes of Tyrannosaurus mcraeensis (NMMNH P-3698) and Tyrannosaurus rex (FMNH PR 2081 and CM 9380) (after³¹); (B), evolutionary tree based on Bayesian tip-dated phylogeny and biogeographic analysis (see SI for full results).

Full size image

In dorsal view the tip of the dentary bows outward so that the symphysis forms a broad “U”. Similar bowing is present in Tyrannosaurus rex^5,14 and Tarbosaurus, associated with transverse expansion of the rostrum. The dentary tip is straight in Daspletosaurus, Lythronax¹⁴, Nanuqsaurus²⁷ and more basal taxa²⁸. The dentary and toothrow curve outwards posteriorly, again suggesting transverse expansion of the skull’s postorbital region, as in Lythronax¹⁴, Tarbosaurus, and T. rex^5,12.

Medially, interdental plates are large and rectangular to triangular, as in other tyrannosaurins^5,13; they are smaller in Albertosaurinae²⁴ and Daspletosaurus²⁴. The lingual bar covers the first two alveoli. It is deep anteriorly then narrows posteriorly to half its anterior depth, a condition otherwise seen only in Tyrannosaurus rex⁵. The symphysis is rugose and covered with bumps and grooves, as in other tyrannosaurines. It extends back to the third alveolus, as in Tarbosaurus¹². In Zhuchengtyrannus¹³ and some individuals of T. rex⁵ it ends under the fourth alveolus. The symphysis lies above the dentary ventral margin, as in Tarbosaurus¹² and Zhuchengtyrannus¹³; in T. rex the symphysis projects below the dentary’s ventral margin²⁵ in some, but not all individuals. The bone’s lateral surface bears pits and scars suggestive of intraspecific combat.

The triangular splenial (Fig. 3D) resembles other tyrannosaurids^5,12,24. The tall dorsal process resembles T. rex¹² and Tarbosaurus¹²; Daspletosaurus²⁴ has a low dorsal process. The apex is triangular, like Tarbosaurus; in T. rex the apex is usually quadrangular (Fig. 4e). The apex is anteriorly displaced compared to other tyrannosaurids. The ventral margin is straight, and the angular process projects posteriorly, versus posteroventrally in Tarbosaurus¹² and Tyrannosaurus rex (Fig. 4E). The angular process is deep, as in Tarbosaurus; it is shallow in T. rex⁵. The anteroventral process, beneath the mylohyoid foramen, has a shelf overlapping the dentary, in T. rex it abuts the dentary.

The anterior process of the angular (Fig. 3E) is longer and narrower than in Tyrannosaurus rex (Fig. 4F) and more similar to Lythronax and Tarbosaurus. It has a narrow ventral prearticular contact; T. rex has a broad anteroventral flange here. The ventral margin forms a sharp angle between the anterior and posterior processes.

The prearticular (Fig. 3F) is gently curved, versus strongly bent in Tyrannosaurus rex⁵ (Fig. 4D) and other tyrannosaurids^12,24. The articular is T-shaped in dorsal view, versus more triangular in T. rex. In posterior view, the retroarticular process is deep and subrectangular; that of T. rex is wider, and semicircular (SI).

Teeth (Fig. 3; SI) resemble Tyrannosaurus rex⁵ in being large, robust, and labiolingually expanded. Tooth crowns have massive apices, as in Tarbosaurus¹²; T. rex teeth have more pointed, spike-like apices⁵. The apex of the sixth dentary tooth is worn; T. rex tooth wear is often heavy as a result of biting bone^6,29,30. The labiolingual width of anterior teeth approaches their mesiodistal diameter, as in T. rex; posterior teeth are robust, but more laterally compressed. Both carinae bear serrations.

Phylogenetic analysis

Phylogenetic analyses consistently recover Tyrannosaurus mcraeensis as sister to T. rex (Fig. 5) using either a parsimony-based or Bayesian tip-dated analysis (SI). The two share a reduced tooth count, deep dentary symphysis, posteriorly shallow lingual bar, and large size. T. mcraeensis is furthermore united with the Tarbosaurus + Tyrannosaurus clade by a postorbital with a broad ventral ramus, strongly convex posterior margin, and large suborbital flange, by the strongly concave dentary alveolar margin, and by the laterally bowed mandible.

Discussion

Systematics

NMMNH P-3698 was referred to Tyrannosaurus rex^17,19,21 based on size and overall resemblance to T. rex, but this assignment has been questioned²⁰. Newly collected material shows that T. mcraeensis differs from T. rex in the shape of the postorbital, squamosal, dentary, prearticular, angular, and articular. The characters that diagnose T. mcraeensis and differentiate it from T. rex are relatively subtle characters relating to the shape and articulation of the skull bones, but because T. rex is known from multiple individuals, it is possible to show that T. mcraeensis lies outside of the range of individual variation seen in T. rex (Fig. 6).

Figure 6

Variation in the postorbitals (A–F), dentaries (G–K) and splenials (M–Q) of Tyrannosaurus mcraeensis (A, G, M) and Tyrannosaurus rex (B–F, H–L, N–Q). See SI for specimen numbers. Scale bars = 10 cm.

Full size image

Tyrannosaurus rex exhibits a high degree of variation^31,32,33 and specimens assigned to the genus may or may not represent multiple species^31,33,34. However in each of the diagnostic characters identified here, NMMNH P-3698 is unlike any other specimen referred to T. rex; furthermore each bone has at least one diagnostic character, it is therefore an outlier from all other specimens referred to T. rex, in every element. Neither can the differences between T. rex and T. mcraeensis be explained as ontogenetic, given that the animal matched T. rex in size. It is worth noting that these differences are subtle, but the differences between species are often relatively subtle. Characters diagnosing different species of Daspletosaurus^10,15 tend to be relatively subtle, as are those diagnosing different species of Alioramus³⁵.

Age of NMMNH P-3698

Referral of NMMNH P-3698 to Tyrannosaurus rex was also based on the assumption that the Hall Lake Formation is late Maastrichtian aged; but no geological or paleontological evidence supports this assignment. In fact, one of the main arguments for a late Maastrichtian age was the incorrect assumption that Hall Lake dinosaurs could be referred to the late Maastrichtian taxa Torosaurus and Tyrannosaurus rex¹⁹. The ceratopsid previously referred to Torosaurus is now identified as a distinct genus, Sierraceratops¹⁶; as shown here, NMMNH P-3698 is distinct from T. rex.

The dinosaur fauna suggests a latest Campanian or Maastrichtian age. Sierraceratops is similar to species known from the latest Campanian, including Coahuilaceratops magnacuerna³⁶, and to Bravoceratops polyphemus from the Javelina Formation of Texas^37, which is probably either latest Campanian or early Maastrichtian. The existence of a titanosaurian sauropod in the Hall Lake Formation has been cited evidence of a late Maastrichtian or ‘Lancian’ age^19,38. Titanosaurs appear suddenly in the latest Cretaceous of the American Southwest, suggesting a distinct biogeographic event resulting from their sudden dispersal into North America³⁹; sauropods are therefore a useful biostratigraphic constraint. However, titanosaurs range from just beneath the K-Pg boundary⁴⁰ to at least 69 ± 0.9 Ma, i.e. mid-Maastrichtian⁴⁰. Sauropods are unknown from the De-Na-Zin Member of the Kirtland Formation of New Mexico³⁹, the top of which is dated to 73.5 Ma⁴¹, or the Cerro Del Pueblo Formation of Mexico, which is latest Campanian, ~ 73.5–73 Ma⁴². Sauropods therefore appear to immigrate into North America between 73 and 69 Ma. The existence of titanosaurs in the assemblage, therefore, does not reject a latest Campanian or early Maastrichtian age, and given that the sauropod appears higher in section, NMMNH P-3698 could predate the arrival of titanosaurians in North America. Finally, a large hadrosaur femur resembles that of the Campanian-Maastrichtian⁴² Edmontosaurus⁴³ and a large edmontosaurin from the latest Campanian Cerro Del Pueblo Formation⁴⁴ in terms of its large size and strongly inturned proximal femoral shaft. The presence of an edmontosaurin is consistent with an age range of latest Campanian to latest Maastrichtian. The dinosaur fauna as a whole is consistent with and suggests either a Campanian to Maastrichtian age. The ceratopsid Sierraceratops also tends to suggest a latest Campanian to early Maastrichtian age. Strikingly, no diagnostic late Maastrichtian dinosaur species are known.

Morphology also suggests Tyrannosaurus mcraeensis is older than T. rex, since it consistently lacks many derived characters characterizing T. rex. Tip-dated phylogenetic analysis recovers NMMNH P-3698 at 69 Ma, slightly younger than implied by the radiometric dates, but still much older than any known T. rex (Fig. 7).

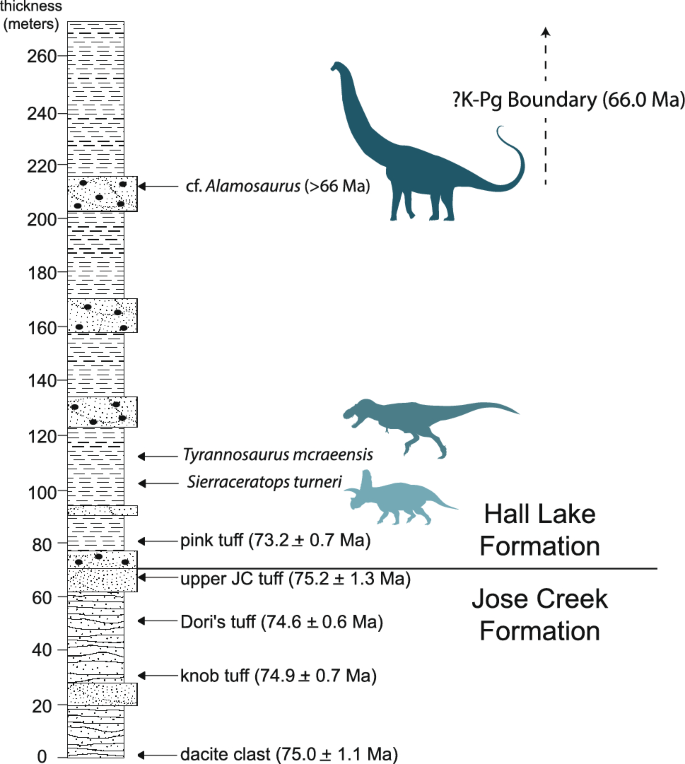

Figure 7

Stratigraphy and radiometric dates of the basal Hall Lake Formation and top of the underlying Jose Creek Formation.

Full size image

Radiometric dates also point towards a latest Campanian or early Maastrichtian age. U/Pb dating²² gives an age of 73.2 ± 0.7 Ma for a tuff 9 m above the base of the Hall Lake Formation, and a series of Late Campanian ages for the upper 70 m of the immediately underlying Jose Creek Formation, at 75.2 ± 1.3 Ma, 74.6 ± 0.6 Ma, 74.9 ± 0.7 Ma, and 75.0 ± 1.1 Ma. Although no radiometric dates are found above NMMNH P-3698, a titanosaur is found 108 m above the site, and can be no younger than 66 Ma, i.e. the K-Pg boundary. No hiatus, coal, or other evidence of the K-Pg boundary is visible in the exposed section, suggesting around 150 m of Cretaceous rock overlay the site. Depending on the estimated rate of sedimentation, Tyrannosaurus mcraeensis may therefore have lived between 72.7 and 70.9 Ma (SI), i.e., latest Campanian or earliest Maastrichtian, 5–7 million years before Tyrannosaurus rex.

Overall, three independent lines of evidence—(i) the dinosaur fauna, (ii) the morphology of NMMNH P-3698 itself, and (iii) the age constraints provided by underlying radiometric dates and overlying dinosaur bones suggest an age somewhat older than the latest Maastrichtian, and that the animal predates Tyrannosaurus rex. However, additional radiometric dates, palynostratigraphy, or vertebrate fossils are needed to provide more precise constraints on the age of NMMNH P-3698.

Tyrannosaurus mcraeensis shows several derived characters T. rex does not: an upturned dentary posteroventral margin, a weakly curved prearticular, and an anterior splenial apex (Fig. 4). These characters imply that T. mcraeensis was a side-branch in tyrannosaurin evolution, and would not have been directly ancestral to Tyrannosaurus rex. If so, then at least two giant tyrannosaurids existed concurrently in North America, with another species ultimately giving rise to Tyrannosaurus rex.

Biogeography and the evolution of body size

Tyrannosaurus mcraeensis belonged to an endemic southern dinosaur community. The Hall Lake fauna (Fig. 8) included T. mcraeensis, the giant chasmosaur Sierraceratops¹⁶, the titanosaurian cf. Alamosaurus, and a giant hadrosaurid¹⁹. This fauna shows no overlap with penecontemporaneous faunas in the latest Campanian/early Maastrichtian of Canada. This northern fauna included the albertosaurine tyrannosaurid Albertosaurus, the centrosaurine Pachyrhinosaurus, the lambeosaur Hypacrosaurus, the hadrosaurs Edmontosaurus and Saurolophus, and the chasmosaurine Anchiceratops; sauropods are absent⁴⁵. Discovery of T. mcraeensis, therefore, corroborates hypotheses that Laramidian faunas were characterized by high endemicity^16,46,47,48, with the Southwest supporting distinct dinosaur species and clades (Fig. 8).

Figure 8

Dinosaurs of the Campanian–Maastrichtian Hall Lake Formation. Scale = 2 m.

Full size image

The presence of Tyrannosaurus mcraeensis in New Mexico and its phylogenetic position suggest that Tyrannosaurini¹⁴ originated as part of this southern fauna. A southern origin of Tyrannosaurini is further supported by the presence of cf. Tyrannosaurus in the Javelina Formation of Texas^49,50 and T. rex in the latest Maastrichtian North Horn of Utah⁷. Following the appearance of tyrannosaurins in southern Laramidia during the Campanian, one lineage dispersed to Asia, giving rise to Tarbosaurus and Zhuchengtyrannus; another gave rise to Tyrannosaurus, eventually moving north to displace albertosaurines in the Late Maastrichtian.

In an alternative character-matrix⁵¹, Tyrannosaurus mcraeensis again emerges as sister to T. rex (SI). In this topology, Tarbosaurus and Zhuchengtyrannus are successive outgroups to the T. mcraeensis–T. rex clade. This topology is ambiguous about the origin of Tyrannosaurini, consistent with either two dispersals of Tyrannosaurinae into Asia, or dispersal into Asia, followed by back-dispersal into North America. The difference is due to the poorly known Zhuchengtyrannus acting as a wildcard taxon, clustering either with Tarbosaurus¹⁴ or as sister to the T. rex—Tarbosaurus clade^9,10,15. The out-of-Asia scenario is dependent on the placement of this uncertain taxon. Resolving these ambiguities requires a better understanding of Asian tyrannosaurs. Similarly, placement of Daspletosaurus spp. along the line leading to Tyrannosaurini¹⁵ would tend to support a northern origin of the Tyrannosaurini. Further study of southern tyrannosaurs such as Bistahieversor and Lythronax can potentially resolve these issues, along with revisions of tyrannosaur phylogeny, but we argue that the appearance of T. rex-like dinosaurs in the Javelina Formation, which appear to be slightly older than T. rex itself, better fits the southern scenario^9,50.

Tyrannosaurus mcraeensis shows that Tyrannosaurini achieved giant size near the end of the Campanian. It furthermore suggests that they did so in southern Laramidia (Fig. 5) but were initially restricted to southern Laramidia, and later dispersed north⁷. Chasmosaurinae show similar patterns, with giant Triceratopsini evolving in southern Laramidia in the Campanian, then moving into the northern Great Plains in the Maastrichtian⁴⁶. Several other giant dinosaurs evolved in southern Laramidia, including large kritosaurin hadrosaurs⁵², the giant lambeosaurine Magnapaulia laticaudus⁵³, and the titanosaurian Alamosaurus sanjuanensis⁵⁴, but did not migrate north. Meanwhile, a tyrannosaurid from northernmost Laramidia, Nanuqsaurus hoglandi²⁷, was smaller than tyrannosaurines from farther south. This, and the presence of giant ceratopsians and hadrosaurs in the Hall Lake Formation (SI) implies geographic patterns of body size evolution: large dinosaurs evolved in southern Laramidia.

Sea level changes have been hypothesized to drive tyrannosaurid diversification¹⁴, and among mammals, land area was found to be associated with body mass of top carnivores and herbivores⁵⁵. However, the patterns raised here suggest that other processes are at work in driving tyrannosaurid size evolution. The evolution of Tyrannosaurus-sized tyrannosaurs appears to precede end-Maastrichtian marine regression by several million years; furthermore the giant tyrannosaurs appear to be initially restricted to a limted area of the relatively small Laramidian landmass. Gigantism therefore appears not to be driven by increases in land area, instead giant theropods evolved despite having relatively small geographic ranges.

Giant tyrannosaurins likely evolved to prey on the giant herbivores found in the south, although the reason for the evolution of large herbivorous dinosaurs—possibly including latitudinal variation in mean annual temperature, primary productivity, or seasonality—remains unknown. These patterns also suggest caution in relying on local dinosaur diversity patterns to study global dinosaur diversity changes preceding the K-Pg extinction.

Materials and methods

We added Tyrannosaurus mcraeensis to an existing character-taxon matrix¹⁴, adding 10 new characters as well as additional taxa (SI2). Phylogenetic analysis was implemented using cladistic methods and total-evidence estimation of phylogeny and divergence times using the fossilized clock model and birth–death priors under diversified sampling as described by recent authors⁵⁶, with tip-dated estimates of fossil ages from all sampled taxa chosen using a “diversity” strategy to span internal branches. We optimized biogeographic history across the summary tree by classifying species into six areas: Europe, South America, Asia, Appalachia, Northern Laramidia, and Southern Laramidia, the latter two separated by present-day Utah and Colorado as the demarcating boundary. We tested a standard suite of biogeographic models in RASP⁵⁷, selecting the DEC + J model as the best fit, and present the most-likely estimates for ancestral range (Fig. 5B).

Data availability

All data is available in the manuscript or Supporting Information.

References

1. Brusatte, S. L. et al. Tyrannosaur paleobiology: New research on ancient exemplar organisms. Science 329, 1481–1485 (2010).

   Article  ADS  CAS  PubMed  Google Scholar

2. Holtz, T. R. in The Dinosauria (eds D. B. Weishampel, P. Dodson, & H. Osmolska) 111–136 (University of California Press, 2004).

3. Weishampel, D. B. et al. in The Dinosauria (eds D. B. Weishampel, P. Dodson, & H. Osmolska) 517–606 (University of California Press, 2004).

4. Osborn, H. F. Tyrannosaurus and other Cretaceous carnivorous dinosaurs. Bull. Am. Museum Nat. Hist. 35, 733–771 (1905).

   Google Scholar

5. Brochu, C. A. Osteology of Tyrannosaurus rex: Insights from a nearly complete skeleton and high-resolution computed tomographic analysis of the skull. J. Vertebr. Paleontol. Mem. 7, 1–138 (2003).

   Article  Google Scholar

6. Gignac, P. M. & Erickson, G. M. The biomechanics behind extreme osteophagy in Tyrannosaurus rex. Sci. Rep. 7, 1–10 (2017).

   Article  CAS  Google Scholar

7. Sampson, S. D. & Loewen, M. A. Tyrannosaurus rex from the Upper Cretaceous (Maastrichtian) North Horn formation of Utah: Biogeographic and paleoecologic implications. J. Vertebr. Paleontol. 25, 469–472 (2005).

   Article  Google Scholar

8. Hutchinson, J. R., Bates, K. T., Molnar, J., Allen, V. & Makovicky, P. J. A computational analysis of limb and body dimensions in Tyrannosaurus rex with implications for locomotion, ontogeny, and growth. PLoS ONE 6, e26037 (2011).

   Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

9. Brusatte, S. L. & Carr, T. D. The phylogeny and evolutionary history of tyrannosauroid dinosaurs. Sci. Rep. 6, 20252 (2016).

   Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

10. Carr, T. D., Varricchio, D. J., Sedlmayr, J. C., Roberts, E. M. & Moore, J. R. A new tyrannosaur with evidence for anagenesis and crocodile-like facial sensory system. Sci. Rep. 7, 1–11 (2017).

    Article  Google Scholar

11. Carr, T. D. A high-resolution growth series of Tyrannosaurus rex obtained from multiple lines of evidence. PeerJ 8, e9192 (2020).

    Article  Google Scholar

12. Hurum, J. H. & Sabath, K. Giant theropod dinosaurs from Asia and North America: Skulls of Tarbosaurus bataar and Tyrannosaurus rex compared. Acta Palaeontol. Pol. 48, 1–10 (2003).

    Google Scholar

13. Hone, D. W. et al. A new, large tyrannosaurine theropod from the Upper Cretaceous of China. Cretaceous Res. 32, 495–503 (2011).

    Article  Google Scholar

14. Loewen, M. A., Irmis, R. B., Sertich, J. J., Currie, P. J. & Sampson, S. D. Tyrant dinosaur evolution tracks the rise and fall of Late Cretaceous oceans. PLoS ONE 8, e79420 (2013).

    Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

15. Warshaw, E. A. & Fowler, D. W. A transitional species of Daspletosaurus Russell, 1970 from the Judith River Formation of eastern Montana. PeerJ 10, e14461 (2022).

    Article  PubMed  PubMed Central  Google Scholar

16. Dalman, S. G., Lucas, S. G., Jasinski, S. E. & Longrich, N. R. Sierraceratops turneri, a new chasmosaurine ceratopsid from the Hall Lake Formation (Upper Cretaceous) of south-central New Mexico. Cretaceous Res. 130, 105034 (2022).

    Article  Google Scholar

17. Carr, T. D. & Williamson, T. E. A review of Tyrannosauridae (Dinosauria, Coelurosauria) from New Mexico. New Mexico Museum Nat. Hist. Sci. Bull. 17, 113–145 (2000).

    Google Scholar

18. Gillette, D., Wolberg, D. & Hunt, A. Tyrannosaurus rex from the McRae Formation (Lancian, Upper Cretaceous), Elephant Butte Reservoir, Sierra County, New Mexico. New Mexico Geol. Soc. Guidebook 37, 235–238 (1986).

    Google Scholar

19. Lozinsky, R. P., Hunt, A. P., Wolberg, D. L. & Lucas, S. Late Cretaceous (Lancian) dinosaurs from the McRae Formation, Sierra County, New Mexico. New Mexico Geol. 6, 7 (1984).

    Google Scholar

20. Lehman, T. M. & Carpenter, K. A partial skeleton of the tyrannosaurid dinosaur Aublysodon from the Upper Cretaceous of New Mexico. J. Paleontol. 64, 1026–1032 (1990).

    Article  ADS  Google Scholar

21. Lucas, S. G., Nelson, W. J., Krainer, K. & Elrick, S. D. The Cretaceous System in central Sierra County, New Mexico. New Mexico Geol. 41, 3–39 (2019).

    Article  Google Scholar

22. Amato, J. M., Mack, G. H., Jonell, T. N., Seager, W. R. & Upchurch, G. R. (2017). Onset of the Laramide orogeny and associated magmatism in southern New Mexico based on U-Pb geochronology. Bulletin 129, 1209–1226.

23. Carr, T. D. & Williamson, T. E. Bistahieversor sealeyi, gen. et sp. nov., a new tyrannosauroid from New Mexico and the origin of deep snouts in Tyrannosauroidea. J. Vertebr. Paleontol. 30, 1–16 (2010).

    Article  Google Scholar

24. Currie, P. J. Cranial anatomy of tyrannosaurid dinosaurs from the Late Cretaceous of Alberta, Canada. Acta Palaeontol. Pol. 48, 191–226 (2003).

    Google Scholar

25. Persons, W. S. IV., Currie, P. J. & Erickson, G. M. An older and exceptionally large adult specimen of Tyrannosaurus rex. Anat. Rec. 303, 656–672 (2020).

    Article  Google Scholar

26. Larson, P. The case for Nanotyrannus. Tyrannosaurid paleobiology, 15–53 (2013).

27. Fiorillo, A. R. & Tykoski, R. S. A diminutive new tyrannosaur from the top of the world. PLoS ONE 9, e91287 (2014).

    Article  ADS  PubMed  PubMed Central  Google Scholar

28. Nesbitt, S. J. et al. A mid-Cretaceous tyrannosauroid and the origin of North American end-Cretaceous dinosaur assemblages. Nat. Ecol. Evol. 3, 892–899 (2019).

    Article  PubMed  Google Scholar

29. Longrich, N. R., Horner, J. R., Erickson, G. M. & Currie, P. J. Cannibalism in Tyrannosaurus rex. PLoS ONE 5(10), e13419 (2010).

    Article  ADS  PubMed  PubMed Central  Google Scholar

30. Erickson, G. M. & Olson, K. H. Bite marks attributable to Tyrannosaurus rex: preliminary description and implications. Nat. Ecol. Evol. 16, 175–178 (1996).

    Google Scholar

31. Paul, G. S., Persons, W. S. & Van Raalte, J. The Tyrant Lizard King, queen and emperor: Multiple lines of morphological and stratigraphic evidence support subtle evolution and probable speciation within the North American genus Tyrannosaurus. Evol. Biol. 49, 156–179 (2022).

    Article  Google Scholar

32. Carpenter, K. Variation. in Tyrannosaurus rex. Dinosaur systematics: perspectives and approaches, 141–145 (1990).

33. Larson, P. Variation and sexual dimorphism in Tyrannosaurus rex. Tyrannosaurus rex, the tyrant king, 103–128 (2008).

34. Carr, T. D. et al. Insufficient evidence for multiple species of Tyrannosaurus in the latest Cretaceous of North America: A comment on “The Tyrant Lizard King, queen and emperor: Multiple lines of morphological and stratigraphic evidence support subtle evolution and probable speciation within the North American genus Tyrannosaurus”. Evol. Biol. 1, 1–15 (2022).

    Google Scholar

35. Brusatte, S. L., Carr, T. D., Erickson, G. M., Bever, G. S. & Norell, M. A long-snouted, multihorned tyrannosaurid from the Late Cretaceous of Mongolia. Proc. Natl. Acad. Sci. 106, 17251–17266 (2009).

    Article  ADS  Google Scholar

36. Loewen, M. A. et al. in New Perspectives on Horned Dinosaurs: The Royal Tyrrell Museum Ceratopsian Symposium (eds M. J. Ryan, B. J. Chinnery, & D. A. Eberth) 99–116 (Indiana University Press, 2010).

37. Wick, S. L. & Lehman, T. M. A new ceratopsian dinosaur from the Javelina Formation (Maastrichtian) of West Texas and implications for chasmosaurine phylogeny. Naturwissenschaften https://doi.org/10.1007/s00114-013-1063-0 (2013).

    Article  PubMed  Google Scholar

38. Wolberg, D. L., Lozinsky, R. P. & Hunt, A. P. Late Cretaceous (Maastrichtian-Lancian) vertebrate paleontology of the McRae Formation, Elephant Butte area, Sierra County, New Mexico. New Mexico Geol. Soc. Guidebook 37, 227–334 (1986).

    Google Scholar

39. Williamson, T. E. & Weil, A. Stratigraphic distribution of sauropods in the Upper Cretaceous of San Juan Basin, New Mexico, with comments on North America’s Cretaceous “Sauropod Hiatus”. J. Vertebr. Paleontol. 28, 1218–1223 (2008).

    Article  Google Scholar

40. Lehman, T. M., McDowell, F. W. & Connelly, J. N. First isotopic (U-PB) age for the Late Cretaceous Alamosaurus vertebrate fauna of West Texas, and its significance as a link between two faunal provinces. J. Vertebr. Paleontol. 26, 922–928 (2006).

    Article  Google Scholar

41. Ramezani, J., Beveridge, T. L., Rogers, R. R., Eberth, D. A. & Roberts, E. M. Calibrating the zenith of dinosaur diversity in the Campanian of the Western Interior Basin by CA-ID-TIMS U-Pb geochronology. Sci. Rep. 12, 16026 (2022).

    Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

42. Fowler, D. W. Revised geochronology, correlation, and dinosaur stratigraphic ranges of the Santonian-Maastrichtian (Late Cretaceous) formations of the Western Interior of North America. PLoS ONE 12, e0188426 (2017).

    Article  PubMed  PubMed Central  Google Scholar

43. Campione, N. E. Hadrosaurs (Indiana University Press, 2015).

    Google Scholar

44. Kirkland, J. I. et al. Large hadrosaurine dinosaurs from the latest Campanian of Coahuila, Mexico. New Mexico Museum Nat. Hist. Sci. Bull. 35, 299–315 (2006).

    Google Scholar

45. Eberth, D. A. & Kamo, S. L. High-precision U-PB CA–ID–TIMS dating and chronostratigraphy of the dinosaur-rich Horseshoe Canyon Formation (Upper Cretaceous, Campanian–Maastrichtian), Red Deer River Valley, Alberta, Canada. Can. J. Earth Sci. 57, 1220–1237 (2020).

    Article  ADS  CAS  Google Scholar

46. Longrich, N. R. Titanoceratops ouranos, a giant horned dinosaur from the Late Campanian of New Mexico. Cretaceous Res. 32, 264–276 (2011).

    Article  Google Scholar

47. Lehman, T. M. Late Maastrichtian paleoenvironments and dinosaur biogeography in the Western Interior of North America. Palaeogeogr. Palaeoclimatol. Palaeoecol. 60, 189–217 (1987).

    Article  Google Scholar

48. Sampson, S. D. et al. New horned dinosaurs from Utah provide evidence for intracontinental dinosaur endemism. PLoS ONE 5, e12292 (2010).

    Article  ADS  PubMed  PubMed Central  Google Scholar

49. Lawson, D. A. Tyrannosaurus and Torosaurus, Maestrichtian dinosaurs from Trans-Pecos, Texas. J. Paleontol. 50, 158–164 (1976).

    Google Scholar

50. Wick, S. L. New evidence for the possible occurrence of Tyrannosaurus in West Texas, and discussion of Maastrichtian tyrannosaurid dinosaurs from Big Bend National Park. Cretaceous Res. 50, 52–58 (2014).

    Article  Google Scholar

51. Voris, J. T., Therrien, F., Zelenitsky, D. K. & Brown, C. M. A new tyrannosaurine (Theropoda: Tyrannosauridae) from the Campanian Foremost Formation of Alberta, Canada, provides insight into the evolution and biogeography of tyrannosaurids. Cretaceous Res. 110, 104388 (2020).

    Article  Google Scholar

52. Prieto-Márquez, A. Skeletal morphology of Kritosaurus navajovius (Dinosauria: Hadrosauridae) from the Late Cretaceous of the North American south-west, with an evaluation of the phylogenetic systematics and biogeography of Kritosaurini. J. Syst. Palaeontol. 12, 133–175 (2014).

    Article  Google Scholar

53. Prieto-Márquez, A., Chiappe, L. M. & Joshi, S. H. The lambeosaurine dinosaur Magnapaulia laticaudus from the Late Cretaceous of Baja California, Northwestern Mexico. PLoS ONE 7, e38207 (2012).

    Article  ADS  PubMed  PubMed Central  Google Scholar

54. Fronimos, J. A. & Lehman, T. M. New specimens of a titanosaur sauropod from the Maastrichtian of Big Bend National Park, Texas. J. Vertebr. Paleontol. 34, 883–899 (2014).

    Article  Google Scholar

55. Burness, G. P., Diamond, J. & Flannery, T. Dinosaurs, dragons, and dwarfs: The evolution of maximal body size. Proc. Natl. Acad. Sci. 98, 14518–15523 (2001).

    Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

56. Ronquist, F. et al. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 61, 539–542 (2012).

    Article  PubMed  PubMed Central  Google Scholar

57. Yu, Y., Blair, C. & He, X. RASP 4: Ancestral state reconstruction tool for multiple genes and characters. Mol. Biol. Evol. 37, 604–606 (2020).

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

The dentary, palatine, and prearticular of NMMNH P-3698 were collected by D. Gillette; additional remains were collected by T. Williamson. Photos for the SI courtesy T. Miyashita.

Author information

Authors and Affiliations

1. New Mexico Museum of Natural History and Science, 1801 Mountain Road N.W., Albuquerque, NM, 87104, USA

   Sebastian G. Dalman, Spencer G. Lucas & Anthony R. Fiorillo

2. Department of Geology and Geophysics, University of Utah, Salt Lake City, UT, USA

   Mark A. Loewen

3. Natural History Museum of Utah, University of Utah, Salt Lake City, UT, USA

   Mark A. Loewen

4. Department of Biological Sciences, The George Washington University, 2023 G St. NW, Washington, DC, 20052, USA

   R. Alexander Pyron

5. Department of Environmental Science and Sustainability, Harrisburg University, 326 Market Street, Harrisburg, PA, 17101, USA

   Steven E. Jasinski

6. Pennsylvania State University, Lehigh Valley, Center Valley, PA, 18034, USA

   D. Edward Malinzak

7. Department of Biological Sciences, University of Alberta, Edmonton, AB, T6G 2E9, Canada

   Philip J. Currie

8. Department of Biology and Biochemistry, University of Bath, Bath, BA2 7AY, UK

   Nicholas R. Longrich

Authors

1. Sebastian G. Dalman
   View author publications

   You can also search for this author in PubMed Google Scholar

2. Mark A. Loewen
   View author publications

   You can also search for this author in PubMed Google Scholar

3. R. Alexander Pyron
   View author publications

   You can also search for this author in PubMed Google Scholar

4. Steven E. Jasinski
   View author publications

   You can also search for this author in PubMed Google Scholar

5. D. Edward Malinzak
   View author publications

   You can also search for this author in PubMed Google Scholar

6. Spencer G. Lucas
   View author publications

   You can also search for this author in PubMed Google Scholar

7. Anthony R. Fiorillo
   View author publications

   You can also search for this author in PubMed Google Scholar

8. Philip J. Currie
   View author publications

   You can also search for this author in PubMed Google Scholar

9. Nicholas R. Longrich
   View author publications

   You can also search for this author in PubMed Google Scholar

Contributions

S.G.D., N.R.L., M.A.L. designed the project. S.G.D., S.G.L., M.A.L., R.A.P., S.E.J., D.E.M., A.R.F., P.J.C. conducted research and wrote the paper. S.G.D., M.A.L., N.R.L. and R.A.P. conducted the phylogenetic analysis.

Corresponding author

Correspondence to Nicholas R. Longrich.

Ethics declarations

Competing interests

The authors declare no competing interests.

Additional information

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Supplementary Information 1.

Supplementary Information 2.

Supplementary Information 3.

Supplementary Information 4.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Cite this article

Dalman, S.G., Loewen, M.A., Pyron, R.A. et al. A giant tyrannosaur from the Campanian–Maastrichtian of southern North America and the evolution of tyrannosaurid gigantism. Sci Rep 13, 22124 (2023). https://ift.tt/4ef1mR8

Download citation

• Received: 08 June 2023

• Accepted: 07 November 2023

• Published: 11 January 2024

• DOI: https://ift.tt/4ef1mR8

Comments

By submitting a comment you agree to abide by our Terms and Community Guidelines. If you find something abusive or that does not comply with our terms or guidelines please flag it as inappropriate.

Adblock test (Why?)

Article From & Read More ( A giant tyrannosaur from the Campanian–Maastrichtian of southern North America and the evolution of tyrannosaurid gigantism | Scientific Reports - Nature.com )
https://ift.tt/f7PpkMh
Science
